Edit Heavy-Duty 30L Bottle Filling Machine Chemical-Resistant Construction for Harsh Production Environments

2025-07-03 14:15:41 glzon

Edit Heavy-Duty 30L Bottle Filling Machine

Model NO.
GZM-30L-4
Type
Volumetric Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Capacity Cup
Filling Principle
Atmospheric Pressure
Packaging Container Lifting Structure
Chute Lifting
Structure
Linear
Packaging
Wood
Packaging Material
Plastic
Application
Food, Beverages, Daily Necessities, Chemicals
Core Components
Pressure Vessels, Pumps, Plcs, Gears, Bearings, Ge
Voltage
220V 50/60Hz
Applicable Industries
Hotels, Manufacturing Plants, Food and Beverage Pl
Filling Accuracy
0.2%
Transport Package
Wood
Specification
1700*650*1300mm
Trademark
GLZON
Origin
Shanghai, China

Packaging & Delivery

Package Size
160.00cm * 80.00cm * 140.00cm
Package Gross Weight
300.000kg

Product Description

Product Description

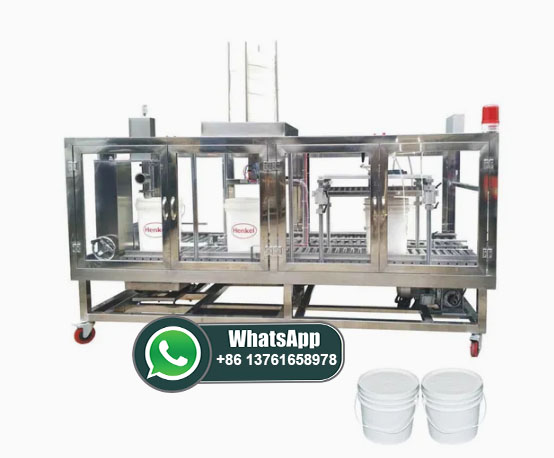

Heavy-Duty 30L Bottle Filling Machine Chemical-Resistant Construction for Harsh Production Environments

ModelGZM-30L-3
Suitable materialLiquid like coating, printing ink, paint, asphalt, glue, lubricant, petrochemical, fineness chemical etc
Weighing formFilling above level (liquid without foam)
Filling under level (liquid with foam)
Power supplyAC220V 380V 50/60Hz
Gas power0.6-0.8MPA
Filling accuracy (%)±0.2%
Materialsus304/sus316/carbon steel/PTFE
Filling capacity5-30KG
Filling speed150-300 containers/hour
Barrel formBottle,Jerry Can ,Tin Can,Tin,Pail, Drum,IBC,etc.
Filling station1
Work environmentTemperature :-20oC~45oCrelative humidity:95%(none dew)
OptionEx-Proof Model Available Upon Request
Products can be customized according to needs, specifications and sizes are mainly based on technical agreements
Product features
Heavy-Duty 30L Bottle Filling Machine Chemical-Resistant Construction for Harsh Production Environments
Product Features

Diverter device: The filling nozzle head is equipped with a detachable diverter device to ensure a large flow of material. No splashing during filling, while ensuring filling accuracy; Replacement chuck: The use of replaceable pneumatic cap clamping machine can be applied to different types of clamps on the market.Clamp lids for spec metal barrels. One-click operation, fast and accurate.



How to operate

-Manually place the bucket on the weighing platform to quickly locate the counterpart
- the system automatically detects the bucket position
- automatically peeling
- automatically open the filling gun and ball valve group to start filling
- large and small two-stage filling load
-reach the target value-the filling gun automatically closes
-manually move to the cover clamping area
-press [Clamping lid] key pneumatic clamping lid
-manual palletizing.

Heavy-Duty 30L Bottle Filling Machine Chemical-Resistant Construction for Harsh Production Environments
Heavy-Duty 30L Bottle Filling Machine Chemical-Resistant Construction for Harsh Production Environments
Touch screen PLC control

Touch screen, PLC, C3 level load cell, dual 6-bit high-precision weighing controller (sampling speed up to 128 times/second), and frequency converter to ensure filling quality and accuracy

Pneumatic filling

Computer weighing, submersible filling, frequency conversion three-speed adjustment. The filling volume can be set directly, easy to operate, and has a gap compensation function
Heavy-Duty 30L Bottle Filling Machine Chemical-Resistant Construction for Harsh Production Environments
Company Profile
Heavy-Duty 30L Bottle Filling Machine Chemical-Resistant Construction for Harsh Production Environments

Our company

Shanghai Guangzhi Automation Equipment Co., Ltd. is a domestic high-tech enterprise located in Songjiang District, Shanghai. This is Shanghai's large industry and large equipment manufacturing base."High excellence and high compatibility" is the manufacturing guideline of Shanghai Guangzhi Instrument Equipment Co., Ltd. The company has passed the IS09001 international quality system certification and IS014001 environmental management system certification. The mechanical equipment is gradually passing the "CE certification". Shanghai Guangzhi Specializing in the production of packaging machinery, customers are welcome to negotiate.

Shipping scenario
Heavy-Duty 30L Bottle Filling Machine Chemical-Resistant Construction for Harsh Production Environments

Heavy-Duty 30L Bottle Filling Machine Chemical-Resistant Construction for Harsh Production Environments

Heavy-Duty 30L Bottle Filling Machine Chemical-Resistant Construction for Harsh Production Environments
Note: Our company reserves the right to update product designs and speci?cations at any time. The product information description on this page does not constitute any guarantee or commitment, and is not regarded as a product or service contract term.
