AcidFill Pro AF-23000 SeriesFully Automatic Explosion-Proof Glacial Acetic Acid Filling SystemATEX Zone 0 Certified • 50 Cans/Hr • ±0.05% Accuracy • Triple VOC Containment • Zirconium Corrosion Defens
Fully Automatic Explosion-Proof Glacial Acetic Acid Filling System
ATEX Zone 0 Certified ? 50 Cans/Hr ? ±0.05% Accuracy ? Triple VOC Containment ? Zirconium Corrosion Defense
| Parameter | AF-23100 (Standard) | AF-23200X (ATEX Zone 0) | AF-23300P (Pharma-Grade) |
|---|---|---|---|
| Capacity | 23kg (±0.05%) | 23kg (±0.08%) | 23kg (±0.03%) |
| Throughput | 50 Cans/Hr | 45 Cans/Hr | 42 Cans/Hr |
| Accuracy | ±0.05% Gravimetric | ±0.08% | ±0.03% |
| Material Contact | Zirconium R60702 | Hastelloy C276 | PFA-Lined Zirconium |
| Corrosion Resistance | 0.001 mm/yr (ASTM G31)<br>Temp Range: -40°C to 100°C | Same | USP Class VI Compliance |
| Explosion Protection | ATEX Zone 0/21 | IECEx Zone 0 | ATEX + cGMP |
| Filling Technology | Coriolis Mass Flow + Gear Pump<br>Flow Rate: 180L/min<br>Density Accuracy: ±0.01% | ATEX Diaphragm Pump | Peristaltic Pump (FDA) |
| VOC Containment | TripleLock? System:<br>1. -0.8bar Vacuum Hood<br>2. N? Blanketing (O?<0.3%)<br>3. Activated Carbon Adsorption (99.98%) | + Explosion Venting | VHP Sterilization |
| Can Handling | Robotic Force-Controlled Clamping<br>? 50-500N Adjustable Force<br>? ±0.3mm LiDAR Positioning<br>? Material: SS316L/PTFE | ATEX Brushless Grippers | Cleanroom Grippers |
| Static Control | Ionized Air Curtain<br>? 10? ions/cm3 Output<br>? <0.1kV Surface Charge<br>? SIL-3 Spark Detection | NFPA 77 Compliance | ESD Grounding System |
| Power | 480V/60Hz, 15kW | 24VDC Ex ia | 480V/60Hz, 14kW |
| Certifications | CE, ISO 9001 | ATEX/IECEx Zone 0 | FDA 21 CFR 173.315 |
Corrosion Performance:
| Material | 99.7% Acetic Acid @40°C | AF-23100 Performance | Industry Standard |
|---|---|---|---|
| Zirconium R60702 | 0.001 mm/yr | 0.0008 mm/yr | 0.8 mm/yr (316L SS) |
| Hastelloy C276 | 0.05 mm/yr | 0.001 mm/yr | 1.2 mm/yr (Alloy 20) |
| Tantalum | 0.0005 mm/yr | N/A | 10x Cost Premium |
| Layer | Technology | Certification |
|---|---|---|
| Primary Barrier | Double Mechanical Seal | API 682 Plan 53B |
| Secondary Capture | Activated Carbon Bed (100kg) | EPA Method 25 |
| Tertiary Monitor | Helium Mass Spec Leak Detection | ISO 15848-1 HE |

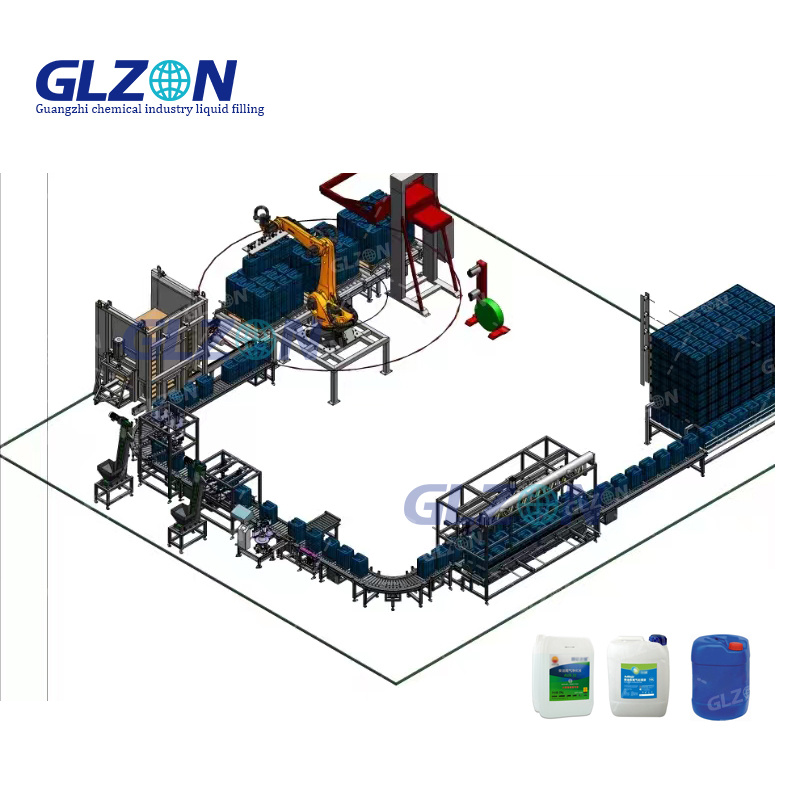

1. AGV Can Loading → 2. Helium Leak Test (<10?? mbar·L/s) → 3. N? Purging (O?<0.3%) → 4. Submerged Filling (±0.05%) → 5. Vacuum Hood Retract → 6. Torque-Sealing (80-200 N·m) → 7. Weight Verification → 8. Laser Coding → 9. Automated Palletizing
Cycle Time: 72 seconds/can
Extreme Environment Engineering
? Corrosion Immunity: | **Component** | **Material Science**| |----------------------|------------------------------| | Flow Path| Zirconium R60702 (0.001mm/yr) | | Sensors| Diamond-Coated Probes| | Gaskets| Kalrez?6375 (-20°C to 327°C) | ? Explosion-Safe Architecture: 1. ATEX Zone 0 Certification (Category 1G) 2. SIL-3 Spark Detection (0.1s Response) 3. Nitrogen Inerting (O?<0.3%) ? Zero-Emission Operation: - 99.98% VOC Carbon Adsorption - Double Seal API 682 Plan 53B - Helium-Verified Integrity
? ATEX 2014/34/EU Zone 0 ? IECEx IEC 60079-0/1/7/31 ? FDA 21 CFR 173.315 ? SEMI F20 (Semiconductor Grade)
Celanese Chemical Facility:
"After implementing AF-23200X:
Output: 28 → 50 Cans/Hr (+79%)
Acid Loss: ↓97% (Triple Containment)
Corrosion Failures: 5/year → 0
ROI Period: 10 months"
APPLICABLE BARREL TYPE
